EHMB 系列 Digital Rockwell Hardness Indicator

EHMB 系列 Digital Rockwell Hardness Indicator

产品特点

  • Replace common dial Rockwell indicator, digitizing with the most economical and convenient way.
  • Measuring and 显示ing in multiple Rockwell scales.
  • Compatible with traditional operations and humanized function design, can improve the test efficiency greatly.
  • Variety of data management and processing functions.

    • 技术规格
    Scale EHM150BHRC, HRA, HRB, HRD, HRE, HRF, HRG, HRK, HRH
    EHM45BHR15N, HR30N, HR45N, HR15T, HR30T, HR45T
    显示er 128 x 64 MatrixLCDwith backlight
    存储 1000 readings
    Conversion HB, HV
    Standards GB/T 230, ASTM E18, ISO 6508
    分辨率 0.1 HR
    Print & Upload Wireless Printing, Data to PC
    电源 Ni-MH batteries
    外形尺寸 ø114x 37 mm, Mounting part ø108 x16mm
    重量 420 grs


                    Mounting Type

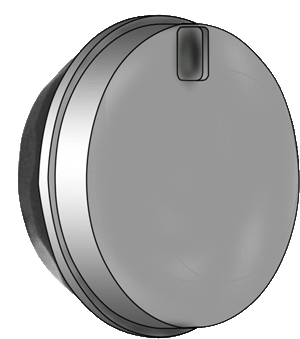

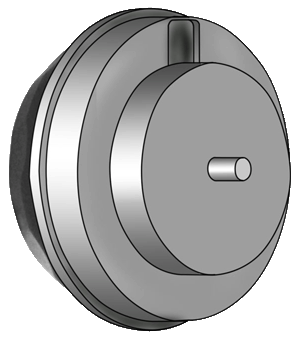

    型号 EHM150B-1 EHM150B-2 EHM150B-3 EHM150B-4 EHM150B-5
    Type EHM150B EHM150B-1 EHM150B-2 EHM150B-3 EHM150B-4
    订货码 EON142a0000 EON142b0000 EON142c0000 EON142d0000 EON142e0000
    Description Mouning part:ø108*16
    Side DC Jack    		 Mouning part:ø108*16
    Back DC Jack    		 Mouning part:ø8*13
    Side DC Jack    		 Mouning part:ø8*13
    Back DC Jack    		 Mouning part:ø10*15
    Back DC Jack
    Configuration Indicator, Charger Indicator, DC cable Indicator, Charger Indicator, DC cable Indicator, DC cable
    Drawing Mounting Drawing


    附件

    		 包装

          		可选附件

    Software(Free download)
    微型打印机EPX58P
    		 资料

    Data Sheet     Manual
    Software     Application Note
