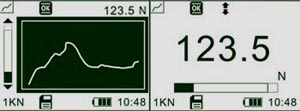

Feasures Accuracy: ± 0.2% of Full Scale Ergonomic, durable, heavy-duty metal construction Automatic reversible display Selectable Units: N, kgf, lbf, ozf and/or gf Touch pad for minimized disturbance Variety of alarm output function Data upload to PC Sensor automatic identification EFG10S Force Indicator Model Order No. EFG10S EON41300000

                Models

Model	Capacity/Resolution			Load Cell	Order No.
	N	kgf	lbf
EFG10S-1K-S	1000/0.1	100/0.01	220/0.05	ESP-F1K-S	EON4130011
EFG10S-2K-S	2000/0.5	200/0.05	450/0.1	ESP-F2K-S	EON4130012
EFG10S-5K-S	5000/1	500/0.1	1100/0.1	ESP-F5K-S	EON4130013
EFG10S-10K-S	10000/1	1000/0.1	2250/0.5	ESP-F10K-S	EON4130014
EFG10S-20K-S	-	2000/0.5	4500/1	ESP-F20K-S	EON4130015
EFG10S-10K-R	10000/1	1000/0.1	2250/0.5	ESP-F10K-R	EON4130024
EFG10S-20K-R	-	2000/0.5	4500/1	ESP-F20K-R	EON4130025
EFG10S-50K-R	-	5000/1	11k/0.001k	ESP-F50K-R	EON4130026
EFG10S-100K-R	-	-	22k/0.005k	ESP-F100K-R	EON4130027
EFG10S-200K-R	-	-	44k/0.01k	ESP-F200K-R	EON4130028

Accessories Mainly Unit Data Cable Loadcell

Package

Optional Mini Printer EPX58P

Reference & Download
