Order No.:EON410c0000
|
|
Feasures

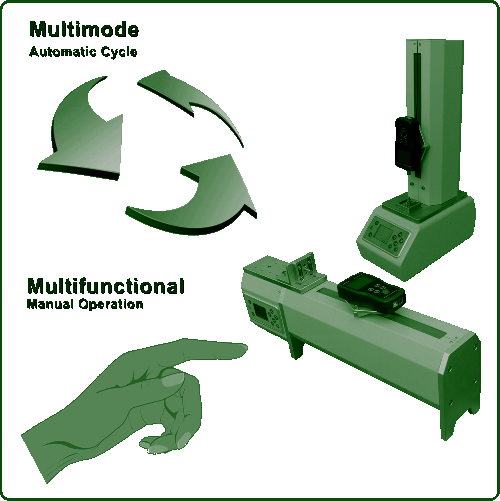

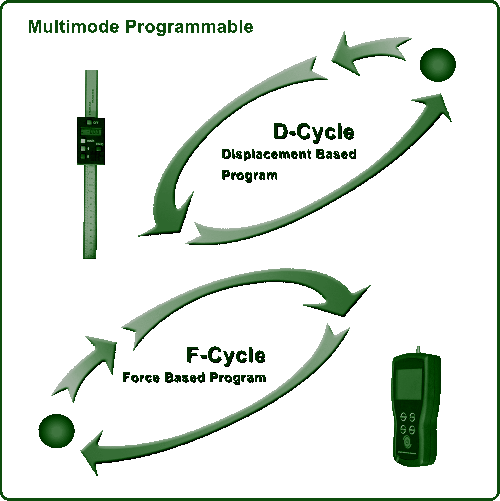

Mutiple operation modes: Manual, Auto Cycle, Demo(Teaching & Playback).

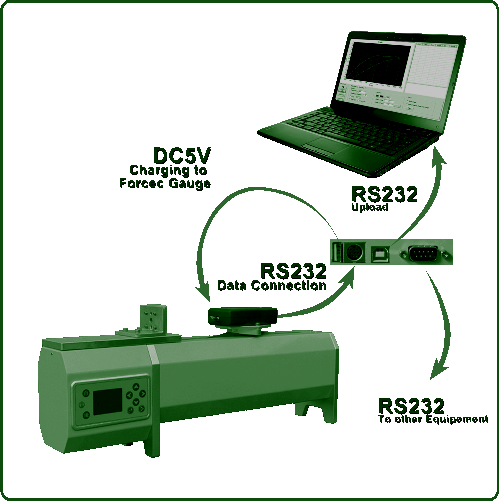

Mutiple output & input: USB, RS232, Set point.
Mutiple protection: Force gauge setpoint, Limit switch, Locked rotor.
Force gauge data integration capability.
|
Specification
Test Mode: Manual/Progera
Travel: 220 mm
Accuracy/Resolution of Displacement:± 0.3 mm/0.1mm
Adjustable speed: 0.6~12mm/sec(adjustable).Speed setting accuracy: ± 3%
Resolution of Speed: 0.1mm/sec
Capacities:65 kg (140 lbf, 650 N)
Display: Dot matrix LCD with backlight
Signal Output:USB(to PC)
Signal input:RS232,set point(from force gauge)
Power Supply:100~230 VAC(1 A)
Dimensions: 340*180*630mm;
Weight: 13.5Kg
|
|
