ETG15F Coating Thickness Gauge


Order No.:EON511-0000

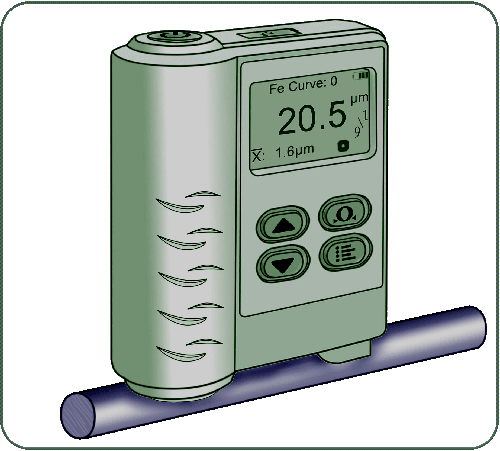

Measurement of shaft parts Continuous measurement
of the thickness distribution
Feasures

  • Very compact size with integrated probe.
  • Magnetic induction method (ISO 2178, ASTM D7091), Measurement of non-magnetic coatings on magnetic substrates.
  • Quick one-hand operation. Place instrument on specimen and see the measured value.
  • Ready to measure immediately without calibration.
  • Easy to perform zero-point correction provides correct measurement results for measuring applications with little changes in shape and substrate material.
  • The one-point calibration function allows for an adaptation in cases of severe changes in shape or substrate material.
  • Data transmitting to PC via USB cable.
  • Statistic function allows for evaluation of a measurement series and display of the most significant characteristic statistical values.

    • Specifications

    Test Method Magnetic induction
    Measuring Range 0~1500µm (0 ~60 mil)
    Resolution 0 ~ 999µm: 0.1µm, ≥1000µm: 1µm
    Accuracy 0 ~ 100µm: ±1.5µm , 101 ~ 1500µm: ≤ ±1.5 %
    Data Memory 1500 readings
    Display Matrix LCD with Backlight
    Power 1.5V*3 (AAA alkaline batteries)
    Printer Wireless Mini-printer(optional)
    Dimensions 88 X 67 X 30 mm
    Weight 120gr
    Certificate CE

    Accessories

    Thickness gauge,
    Substrate,
    Certification foils set,
    3 AAA batteries,
    Data cable,
    Data logger software,
    Sheath,
    User's manual, Certificate.     		Package

          		Optional

    Mini Printer EPX58P
