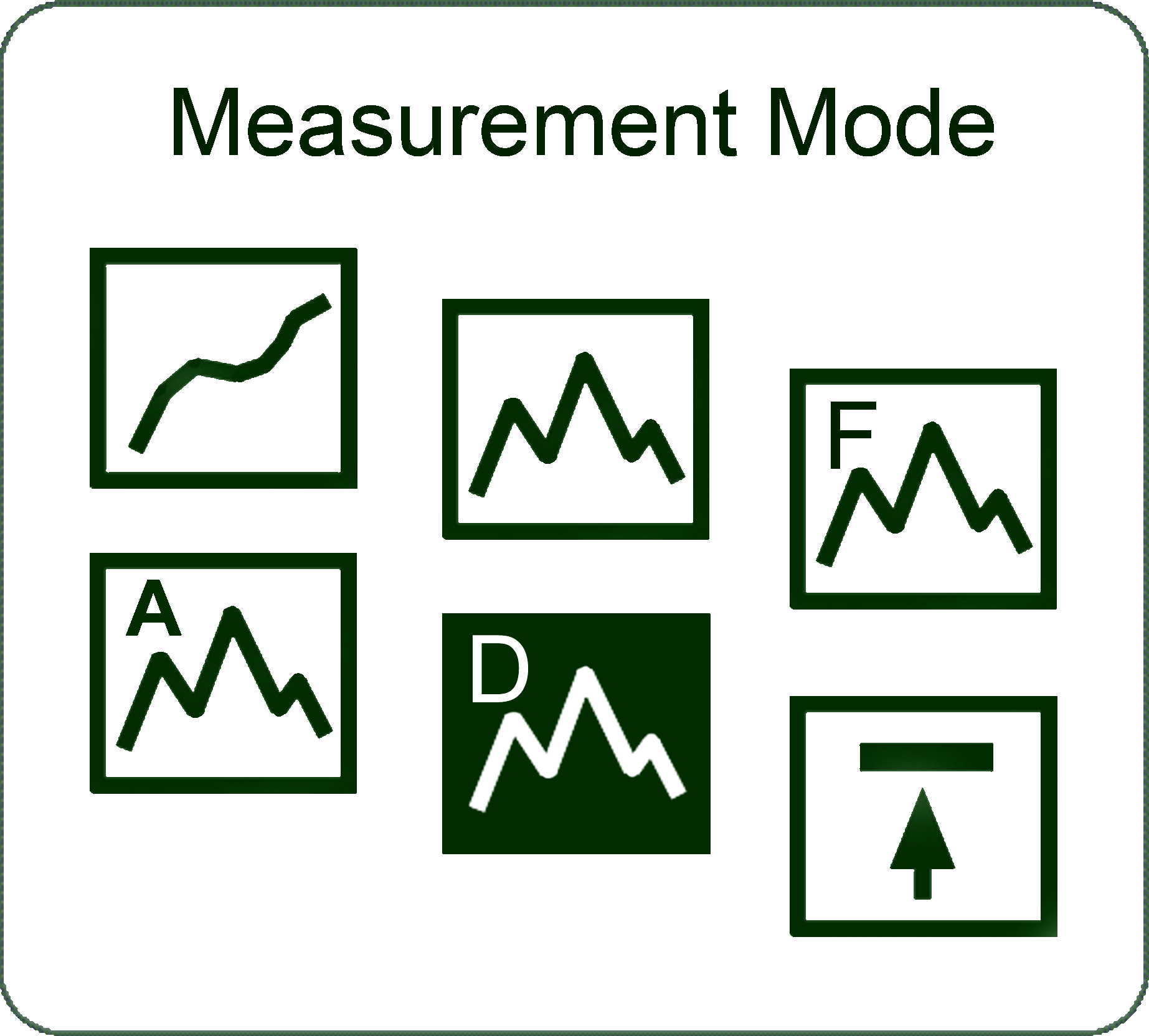

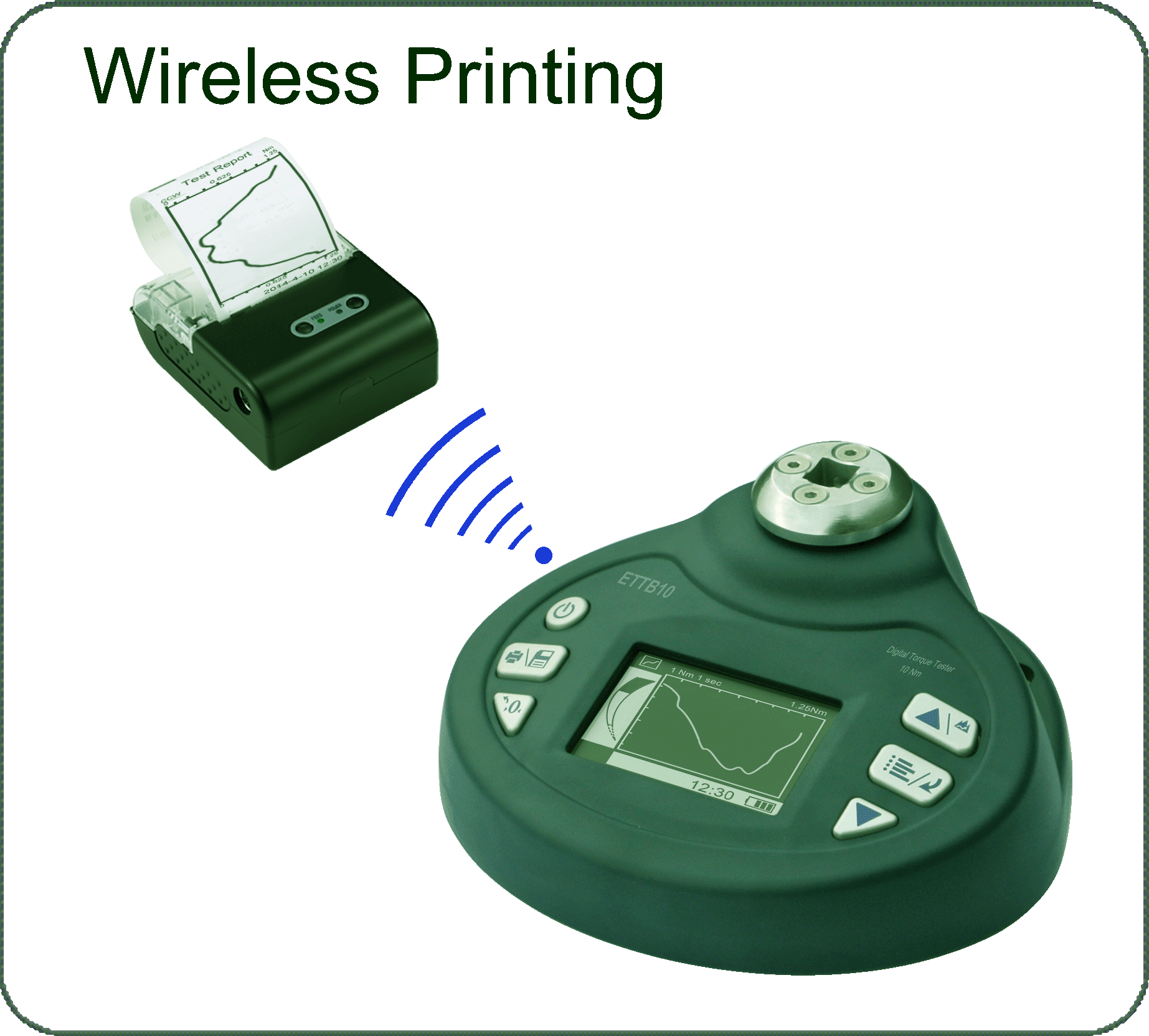

Feasures Range: 5%C ~ 100%C Accuracy: ±0.3% Display Mode: Data/Graph Measuring Mode: Track, Peak, First Peak, Double Peak, Preset, Auto Peak, etc. Units: N*m,N*cm,kgf*cm,lbf*ft,lbf*in Printing: Wireless Printer Multiple data interfaces, USB to PC, RS232C

                 Models

Model	Capacity/Resolution.					Interface Type	Order No.
	N*m	N*cm	kgf*cm	lbf*ft	lbf*in
ETTB2	0.1~2 / 0.0002	10~200 / 0.02	1~20 / 0.002	0.07~1.48 / 0.0002	0.89~17.7 / 0.002	☐ 12.5(1/2"), ☐ 6.3(1/4")	EON422b0000
ETTB5	0.25~5 / 0.0005	25~500 / 0.05	2.5~50 / 0.005	0.18~3.7 / 0.0005	2.2~44.3 / 0.005		EON422c0000
ETTB10	0.5~10 / 0.001	50~1000 / 0.1	5~100 / 0.01	0.37~7.4 / 0.001	4.4~88.5 / 0.01		EON422d0000
ETTB20	1~20 / 0.002	100~2000 / 0.2	10~200 / 0.02	0.7~14.8 / 0.002	8.9~177 / 0.02	☐ 12.5(1/2"), ☐ 10(3/8")	EON422e0000
ETTB50	2.5~50 / 0.005	250~5000 / 0.5	25~500 / 0.05	1.8~36.8 / 0.005	22~443 / 0.05		EON422f0000
ETTB100	5~100 / 0.01	500~10000 / 1	50~1000 / 0.1	3.7~74 / 0.01	44~885 / 0.1		EON422g0000

Accessories Mainly Unit Printer Cable Data Cable Recharger Adapter

Package

Optional Mini Printer EPX58F EST-TT1 Torque Test Stand EST-TT2 Torque Test Stand Rundown Adapter

Reference & Download
