Dimensions of Load Cell

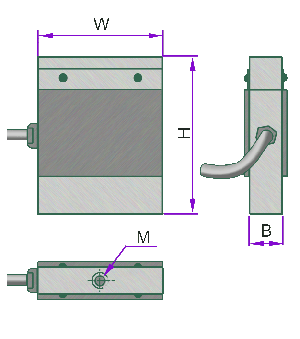

Type: S-Beam

Model	Capacity	Dimensions(mm)
		W	H	B	M
ESP-F1K-S	1k	51	76.2	19	M12X1.75
ESP-F2K-S	2k
ESP-F5K-S	5k
ESP-F10K-S	10k			25.4
ESP-F20K-S	20k	76.2	108		M18X1.5

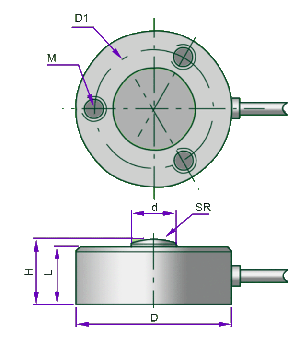

Type: Ring

Model	Capacity	Dimensions(mm)
Model	Capacity	D	d	L	H	Sr	d1	m
ESP-F10K-R	10k	32	8	14	16	16	24.5	3-M5
ESP-F20K-R	20k	38	11				30
ESP-F50K-R	50k	38	11				30
ESP-F100K-R	100k	82	22	32	44	50	68	4-M8
ESP-F200K-R	200k	100	28	36	48	1200	80	4-M8
