D Cycle Programming Examples

|
The moterised test stands have automatic cycle function. Just set a program, the test can be done automatically. There are 2 types of cycle.
|
|
D-Cycle |
|

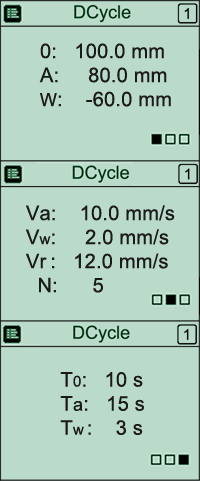

Setting Interface
|
O: Absolute coordinates of Start Point; A: Relative coordinates of Access Section End Point W: Relative coordinates of Working Section End Point Va: Speed of Access Section Vw: Speed of Working Section Vr: Speed of Return Section N: Cycle Time T0: Dwell time at Start Point Ta: Dwell time at Access Section End Point Tw: Dwell time at Working Section End Point |
|
|
|
|
 * The"O" must be enough, the "-" coordinate can be set. The Imput effectiveness will be detected automatically, so as not to run out of travel range during program execution. |
|
|
|
